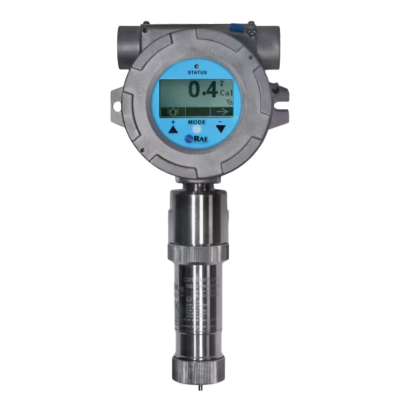

RAEGuard 2 PID – Honeywell BW™

RAEGuard 2 PID is a fixed photoionisation detector (PID) that measures a broad range of volatile organic compounds (VOCs)

Faster response time – Thanks to the sample flow-through design
Reduce maintenance cost – Easy to remove sensor module in hazardous locations without using of tools
No false alarms – Large UV lamp and better sealing allows greater sensitivity, faster speed of response and better resolution

Specifications

Digital Smart Sensor Technology
Detection range 0.01 to 100 ppm, 0.1 to 1000 ppm, or 1 to 1000 ppm
Operates on 10 to 28 VDC and provides an analogue (4-20mA) three-wire signal output, and RS-485 Modbus digital signal output
Graphic display and LED light status indicator for fault and alarm conditions

Description

RAEGuard 2 PID is a fixed photoionisation detector (PID) that measures a broad range of volatile organic compounds (VOCs). The RAEGuard 2 PID operates on 10 to 28 VDC and provides an analog (4-20mA) three-wire signal output and RS-485 Modbus digital signal output. Calibration and maintenance have been greatly simplified as the digital PID module can be easily removed in hazardous locations for calibration or maintenance.

The RAEGuard 2 PID has a graphic display and local sound alarm and LED light status indicator. In addition, Low, High, and Fault relays can be configured to trigger external alarms or process controls. A magnetic key interface enables the detector to be calibrated and operational parameters adjusted with the explosion-proof enclosure in place.

KDF RAEGuard 2 PID Datasheet 2022
