Description

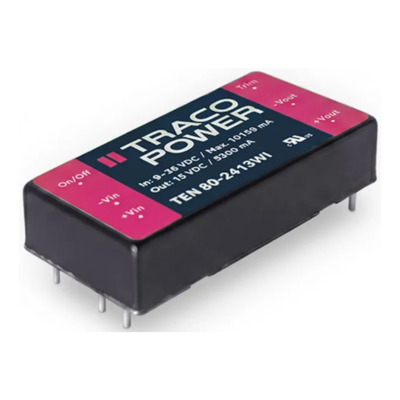

High-performance 80 Watt DC/DC converter modules
- 2″ x 1″ metal package
- Wide 4:1 input voltage range 9–36, 18–75 VDC
- Minimal heat development due to high efficiencies up to 92%
- Remote On/Off and Trim function
- Operating temperature range –40°C to +85°C
- EN 55032 class A (with external components)
- Protection against short circuit, overvoltage and overtemperature
- Under voltage lockout
TEN 80-2412WI Power Supplies
12 VDC, Output Adj 10.8-13.2 VDC, 6600 mA, Power Rating 79.2 W, single, Input 9-36 VDC
TEN 80-2413WI Power Supplies
15 VDC, Output Adj 13.5-16.5 VDC, 5300 mA, Power Rating 79.5 W, single, Input 9-36 VDC
TEN 80-2415WI Power Supplies
24 VDC, Output Adj, 21.6-26.4 VDC, 3300 mA, Power Rating 79.2 W, single, Input 9-36 VDC
TEN 80-2415WI Power Supplies (on demand)
54 VDC, (45.9-56.7 VDC), Power rating 79.92 W, Input 9-36 VDC
TEN 80-2422WI Power Supplies
±12 VDC, 3300/3300 mA, Power Rating 79.2 W, dual, Input 9-36 VDC
TEN 80-2423WI Power Supplies
±15 VDC, 2660/2660 mA, Power Rating 79.8 W, dual, Input 9-36 VDC
TEN 80-4812WI Power Supplies
12 VDC, Output Adj 10.8-13.2 VDC, 6600 mA, Power Rating 79.2 W, single, Input 18-75 VDC
TEN 80-4813WI Power Supplies
15 VDC, Output Adj 13.5-16.5 VDC, 5300 mA, Power Rating 79.5 W, single, Input 18-75 VDC
TEN 80-4815WI Power Supplies
24 VDC, Output Adj 21.6-26.4 VDC, 3300 mA, Power Rating 79.2 W, single, Input 18-75 VDC
TEN 80-4815WI Power Supplies (on demand)
54 VDC, (45.9-56.7 VDC), Power Rating 79.92 W, Input 18-75 VDC
TEN 80-4822WI Power Supplies
±12 VDC, 3300/3300 mA, Power Rating 79.2 W, dual, Input 18-75 VDC
TEN 80-4823WI Power Supplies
±15 VDC, 2660/2660 mA, Power Rating 79.8 W, dual, Input 18-75 VDC
KDF has enjoyed a long-term relationship with Traco Power as their Australian distributor. Talk to our experienced staff members about your power supply requirements.
